traceroute

INTRO

• traceroute is the linux command that prints the route that a packet takes to reach the host.
• Used to show the route data packets take.
• traceroute not only pings the final destination, it also pings each router on its way to the destination.
• traceroute command is much similar to the ping command.
• The main difference between is,
  • Ping command is used to check if a particualar IP address is accessible or not. It works by sending a packet to the destination of the domain name. It also measures the round trip time.
  • traceroute command will show the number of steps(hops) required to reach the destination. It will also show the time lapse of each step.
• Measures the round trip time.
• Traceroute can pinpoint where the problem lies.
• traceroute is not a default utility of the linux system. To use the traceroute, we need to install it manually. To install, use the below commands.
  • sudo apt install inetutils-traceroute
  • sudo apt install traceroute
• The utility can show an estimate of the time taken by packets as they move through intermediate routers.

Terms need to know

• hops - The journey from one computer to another.
• TTL Time to Live.
• Data packets units of communication that travel along a given network path

WHEN TO USE

• traceroute command can be used when troubleshooting possible connection issues to website.
• When a website/domainname is not reachable, we will use the traceroute command.
• Sometimes, the website is running and healthy, situation, due to the breakdown of the intermediate routers website can't be accessed.
• In these case, we can use the traceroute to check at which step the request has taking the break.

Using tranceroute

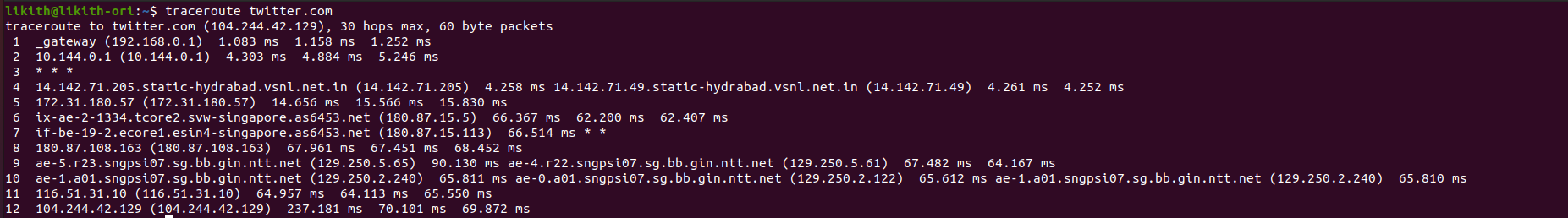

• command: traceroute twitter.com
• From above, we can see that there are 12 hops/stages between our computer and the twitter website/destination.
• In first line, you can see the I.P address of the twitter.
• From next line, you can see the HOPS.
• The format of the each HOP line as follows.
  • The name of the device.
  • The I.P address.
  • The time it took round trip for each of the three tests.

Available Options

• -n --> To hide the device names.
• -q --> Increase/Decrease the packets.
• -f --> To filter the HOPS request.
• -p --> Set the base UDP port number used in probes. The default is 33434.

Hiding devic names

• Sometimes, it is tedious to analyse using with device names. To make it easier, use below command to hide the devices names.

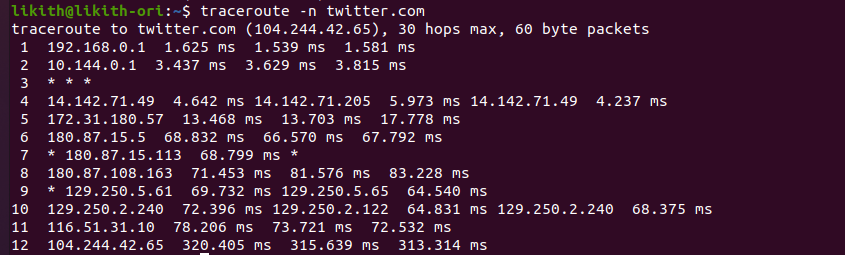

• command : traceroute -n twitter.com

Setting the Number of Tests

• By default, traceroute sends three packets to each hop. We can use the -q flag to increase or decrease.

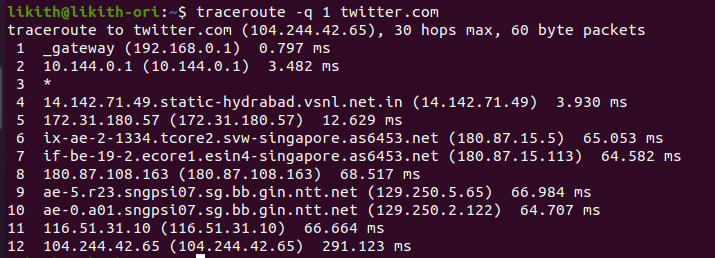

• command: traceroute -q 1 twitter.com

TTL option

• If we need to check only from certain hops, we can filter the hops requests as follows.
• command: traceroute -f 10 google.com

Port changing

• By default, traceroute uses the 33434. But sometimes, website that we trying to access.

TROUBLE SHOOTING EXAMPLE

• Sometimes, we need to look for availability of domain. For this we will use ping/curl followed by the domain/I.P

• command : curl bajaj-dev.oriserve.com

• From above we can see that, domain is not reaching.In this case, we need to investigate in more detail. So, we need to use traceroute command.

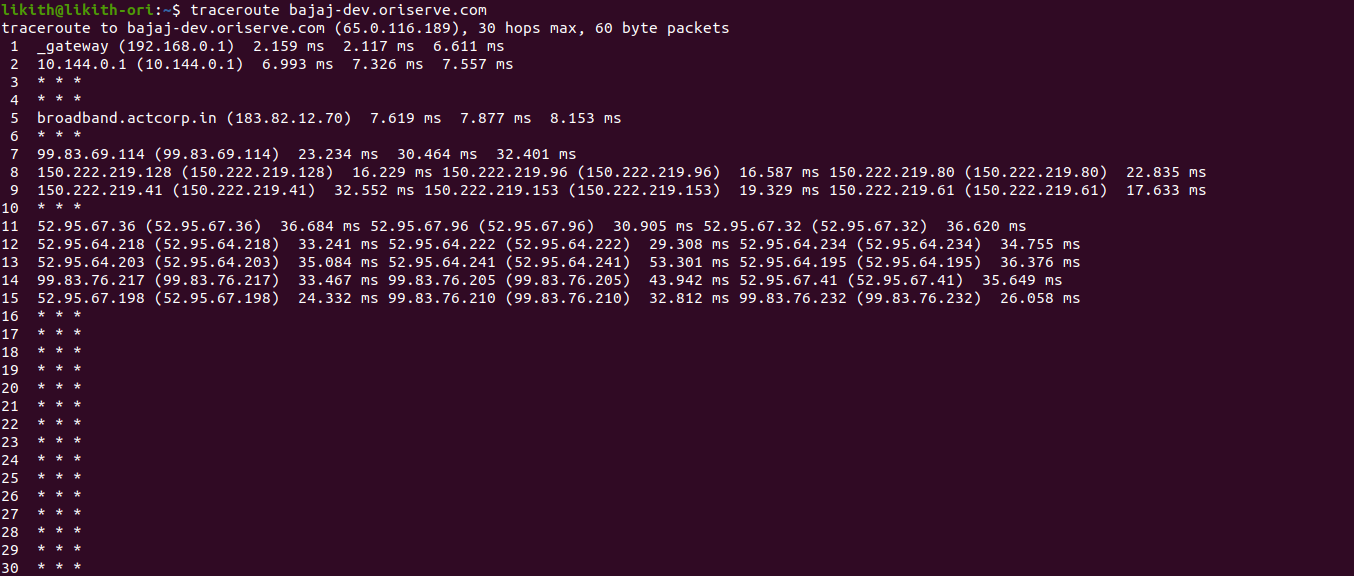

• command : traceroute bajaj-dev.oriserve.com

How to Read a Traceroute output ?

• When running a traceroute, the output shows the path packets take when traveling to a destination point.

• The first colums indicates the hop number

• The second columns three columns show the round-trip time for a total of three packets.

  • For nearby networks, these numbers are usually below 100ms.
  • For distant networks in other countries, typical RTT values go up to 300ms.

• Mainly,we can observe the asterisk symbols. This message indicates that.

  • The router is down.
  • The router is configured not to return traceroute results.
  • A firewall is enabled on the router.
  • A time-out for one of the previous routers.

• The last column displays the destination I.P address.
