Logging Review

We have enabled logging using ELK stack.

DB Access Logging Review [New Method]

Check ELK for unnecessary or unauthorized access of database.

• Log into the ELK console.
• Go the dashboard tab and search for particular brand dashboard.
• Open the dashboard and check for mongo_monitor logs.
• In the dashboard there are 3 parts.
  • Network Tracking
  • Access Tracking
  • OPS
• Network tracking is used to continuously monitor network traffic collecting a real-time and historical record of what’s happening on your network.
  • There is a connection id which links to remote ip & platform i;e nosql, nodejs etc.
  • find the connection id or ctx you need to track and search like below
  • json.attr.connectionId:4493 or json.ctx:conn4493 .Below screenshot is for you reference.
  •

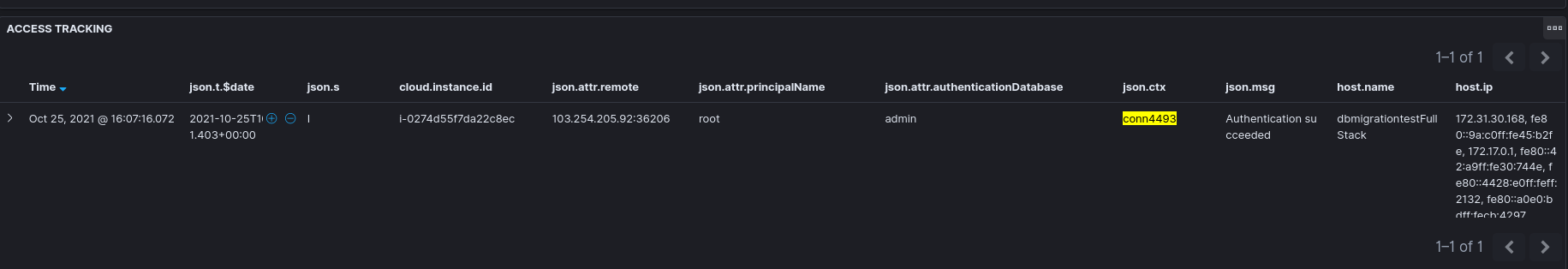

• Access tracking is used to continuously monitor the access that your have successfully authenticated or not with username & database.
  • Here you will track the connection with username like json.attr.principalName: root and database json.attr.authenticationDatabase: admin.
  • Below screenshot is for you reference.
  •

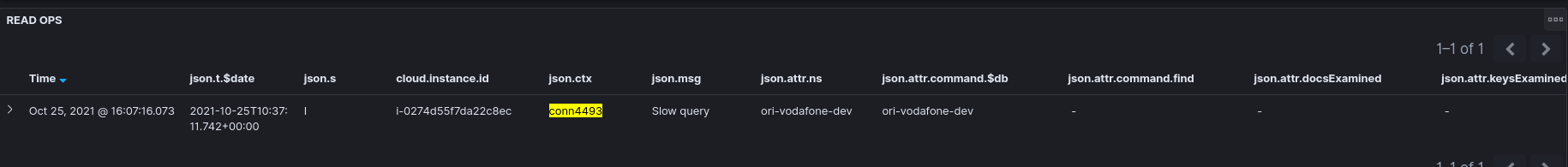

• OPS is used to monitor all the operations done by a particular user (which we got from access tracking) by a particular IP (which we got from network tracking). Below screenshot is for you reference.
  •
• Do a monthly review of unneccesary or unathorized access of database.

DB Access Logging Review [Old Method]

Check ELK for unnecessary or unauthorized access of database.

• Log into the ELK console.
• Go the dashboard tab and search for particular brand dashboard.
• Open the dashboard and check for mongo_monitor logs.
• Here you will get all info together.
• First track you ip then you will get connection id.

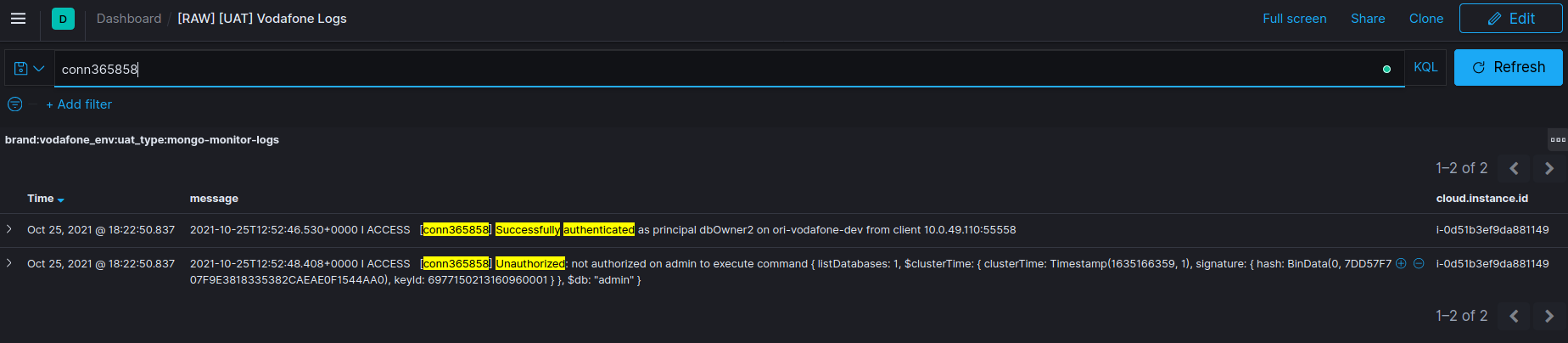

• By using connection id search all the operations done by a particular user like below in the screenshot.
  •

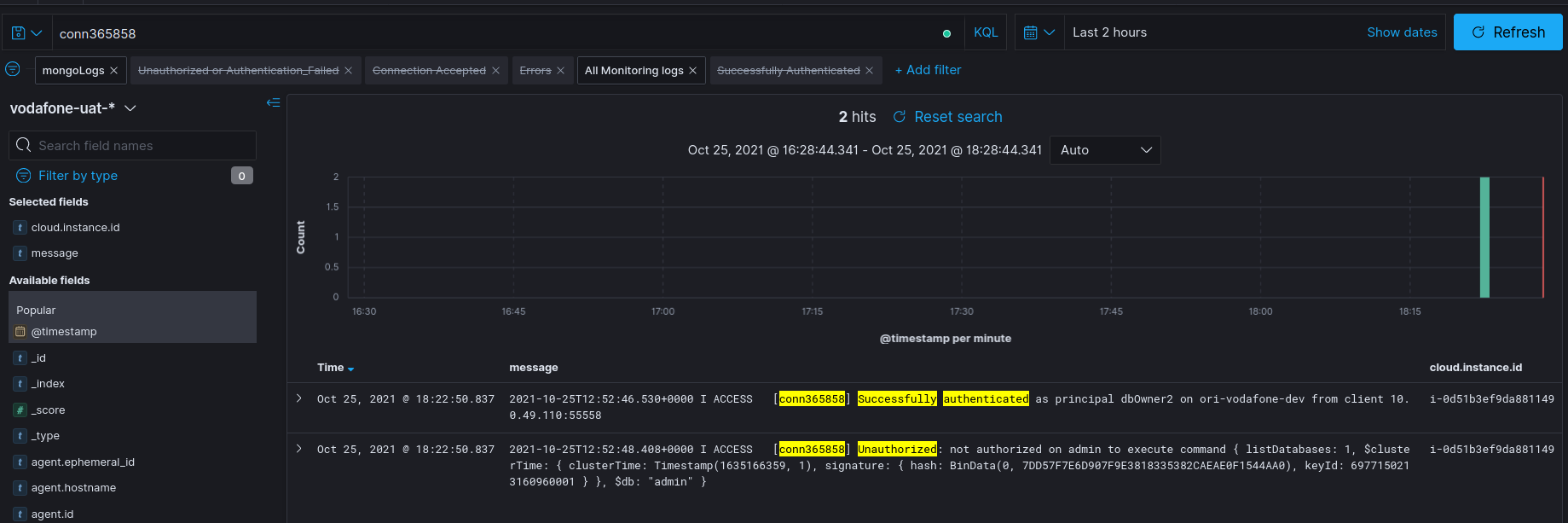

• If someone don't have sufficient permissions and try to perform any activity on db then check the message unauthorized like in screenshot below.
  •

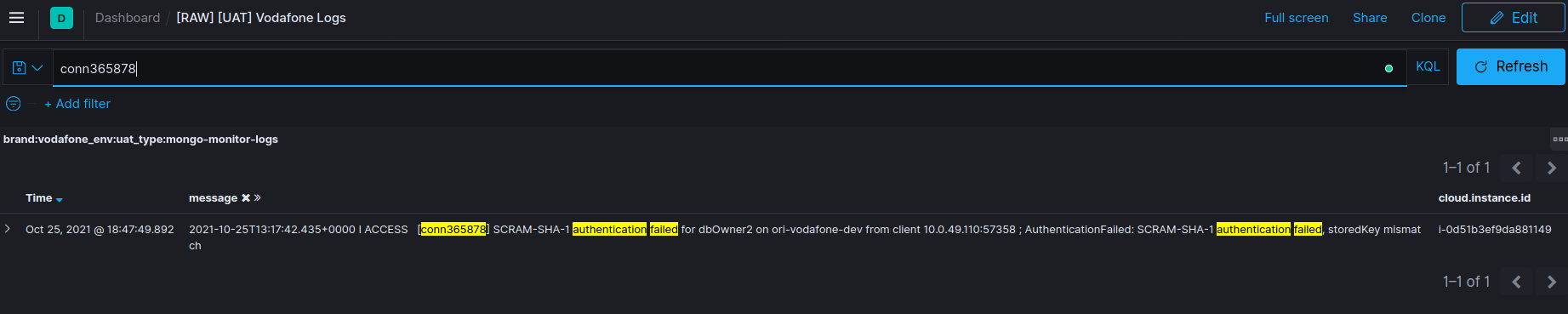

• If someone try to access db with incorrect creds or by the unauthorized way then track the logs with message authentication failed like in below screenshot.
  • .
